Disadvantages of Normal Temperature Measurement

Close Infection Risk

Close Infection Risk

Long Queues avoid Social Distancing

Long Queues avoid Social Distancing

Difficult to register Temperature measurement recods

Difficult to register Temperature measurement recods

Low Labor Efficiency & High Cost

Low Labor Efficiency & High Cost

Manual survellance

Manual survellance

Infrared thermal imaging temperature measurement

Temperature measurement speed

Temperature measurement speed <1 second

Automatic warning of abnormal body temperature

Automatic warning of abnormal body temperature

Temperature measurement distance

Temperature measurement distance 0.3 ~ 0.7m

Temperature measurement accuracy

Temperature measurement accuracy ≤+ 0.3℃

Temperature measurement range

Temperature measurement range 0℃ ~ 40℃

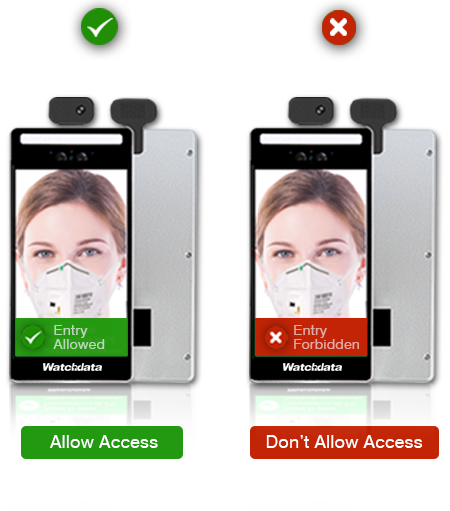

Face Recognition Access Control

Face Recognition Access Control

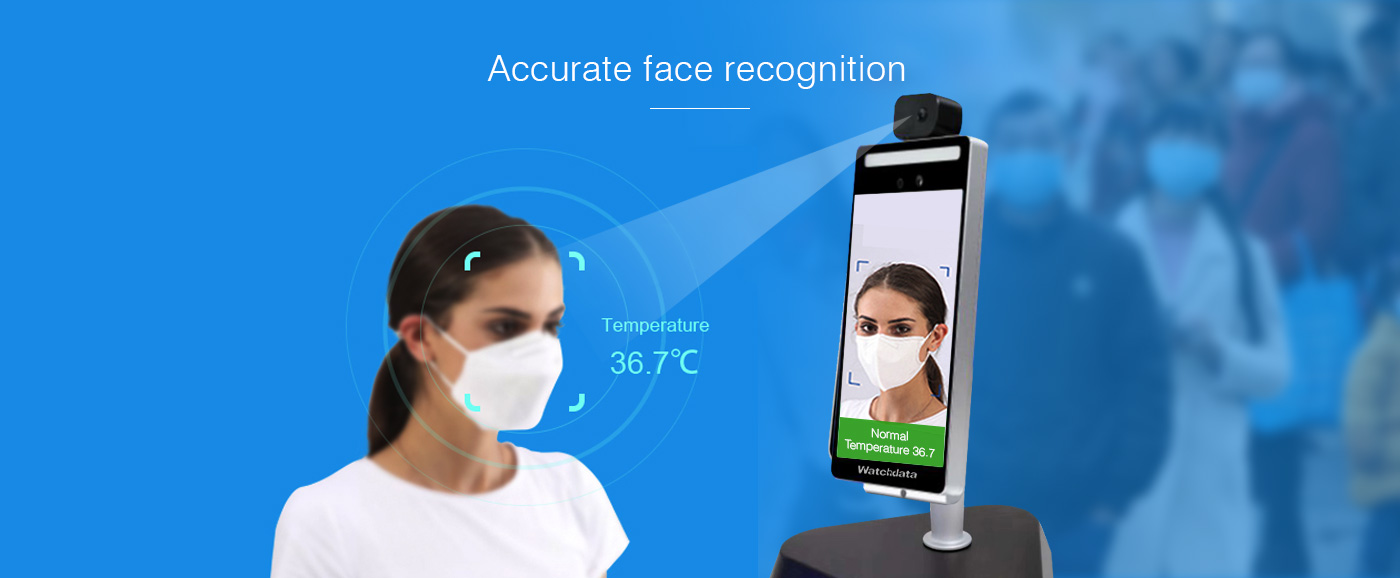

Accurate face recognition

Face Matching

20,000 face matching library

Recognition speed

Recognition speed <0.5 seconds

Living accuracy

Living accuracy >98%

Support mask recognition

Support mask recognition

Recognition rate

Recognition rate >80%

Mask wearing tips

Mask wearing tips

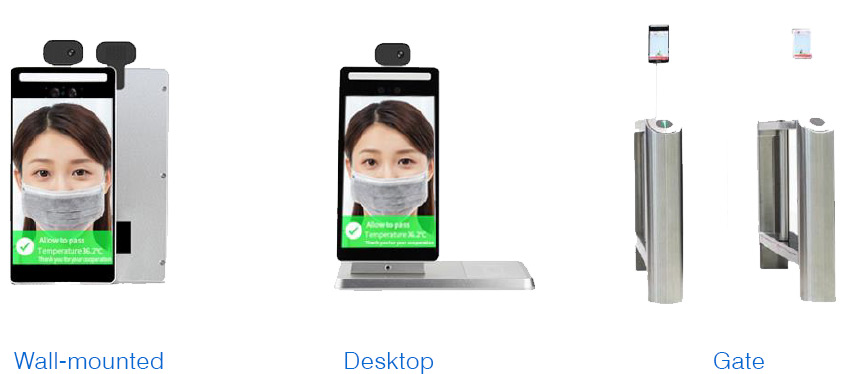

Installation Method

Installation Method

Highlight Specification of WD C7808

  • Automatic light compensation
  • Support local library of 20K identity , function for both offline and online
  • Support un identified user detection and snapshot;
  • Waterproof, high temperature proof , anti backlight, adapt to a variety of outdoor scenes
  • Audio alarm once body temperature detected equals or exceeds 37.3
Hardware Parameters
Dimension Terminal 240*123*19.5 mm (Height * Width *)
Mounting Method Desktop, On the Wall, On the Gate
Resolution 1280 * 800 px
Touch Screen 8 inches,
Mainboard
CPU 4 Core, up to 1.8 GHZI
Internal Storage 2 G
Storage Space 8 G
Camera Binocular Camera, 2 Million px, RGB Infrared, Wide Dynamic Supported, Vertical Angle 67o, Horizontal Angle 37o
OS Android 5.1
Audio Internal
Video Internal
USB Interface One USB 2.0 Interface
Cable RJ45 Ethernet
Temperature Measurement Module TS N95 Temperature Measurement Module Supported
Compensation Light IR Compensation Light, with Green, White and Red Indicator
Software Parameters
Face Detection One Individual Tested and Tracked Simultaneously
1:N Face Recognition 99.7% recognition a ccuracy under the condition of 0.03% false recognition rate
Infrared Image
Measurement Range 25 ~ 45oC
Heat Image Accuracy 0.1oC
Body Temperature Error Range ≤+0.4oC
Environment Temperature to Measure Body Temperature 0 ~ 3oC
Measure Distance 40 to 70 cm
Resolution 32 * 32 px
Remote Update Support
Other Parameters
Protection Level IP54
Power DC 12V IN
Working Temperature - 20 ~ 70oC Infrared excluded
Working Humidity 10% ~ 90%
Power Consumption 18 W Max
Language English, Mandarin Simple
Weight About 1450g

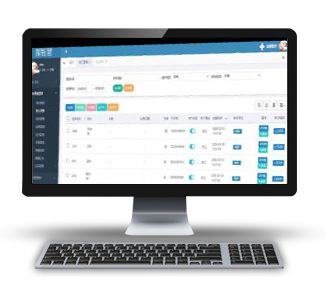

Smart Cloud service platform

Support cloud and on-premises deployments

Smart Cloud service platform

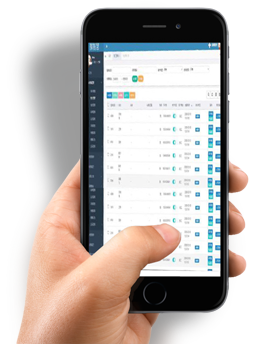

Winther App

Selfie upload Easy to operate

Winther App

Application Scenario

Stations

Stations

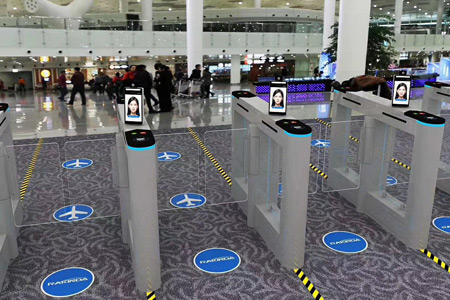

Airport

Airport

Malls

Malls

Factories

Factories

Community

Community

Schools

Schools
